Stainless steel floor manifolds 1″ – WiRo

Manifolds for underfloor heating by Wigell®

Manifolds for surface heating, including underfloor heating, of the WiRo and Wirox product lines are made of brass grade CW617N in the range from 2 to 18 circuits.

STAINLESS STEEL MANIFOLD WITHOUT VENTING AND DRAINING GROUP - WIRO

MPN

Size

Quantity per pack

01.0320601

2 circuits

1

01.0320602

3 circuits

1

01.0320603

4 circuits

1

01.0320604

5 circuits

1

01.0320605

6 circuits

1

01.0320606

7 circuits

1

01.0320607

8 circuits

1

01.0320608

9 circuits

1

01.0320609

10 circuits

1

01.0320610

11 circuits

1

01.0320611

12 circuits

1

01.0320612

13 circuits

1

01.0320613

14 circuits

1

01.0320614

15 circuits

1

01.0320615

16 circuits

1

01.0320616

17 circuits

1

01.0320617

18 circuits

1

Advantages

  • Material: Stainless Steel
  • Temperature [max]: 70°C
  • Working pressure [max]: 6 bar
  • Flow meters: 0-5 l/min
  • Handle: with damping rubber
  • Glycol [max]: 50%
  • PZH certificate
  • Warranty: 2 years for the product
  • Warranty: 5 years for tightness

STAINLESS STEEL MANIFOLD WITH KEY VENT - WIRO

MPN

Size

Quantity per pack

01.0321801

2 circuits

1

01.0321802

3 circuits

1

01.0321803

4 circuits

1

01.0321804

5 circuits

1

01.0321805

6 circuits

1

01.0321806

7 circuits

1

01.0321807

8 circuits

1

01.0321808

9 circuits

1

01.0321809

10 circuits

1

01.0321810

11 circuits

1

01.0321811

12 circuits

1

01.0321812

13 circuits

1

01.0321813

14 circuits

1

01.0321814

15 circuits

1

01.0321815

16 circuits

1

01.0321816

17 circuits

1

01.0321817

18 circuits

1

Advantages

  • Material: Stainless Steel
  • Temperature [max]: 70°C
  • Working pressure [max]: 6 bar
  • Flow meters: 0-5 l/min
  • Handle: with damping rubber
  • Glycol [max]: 50%
  • PZH certificate
  • Warranty: 2 years for the product
  • Warranty: 5 years for tightness

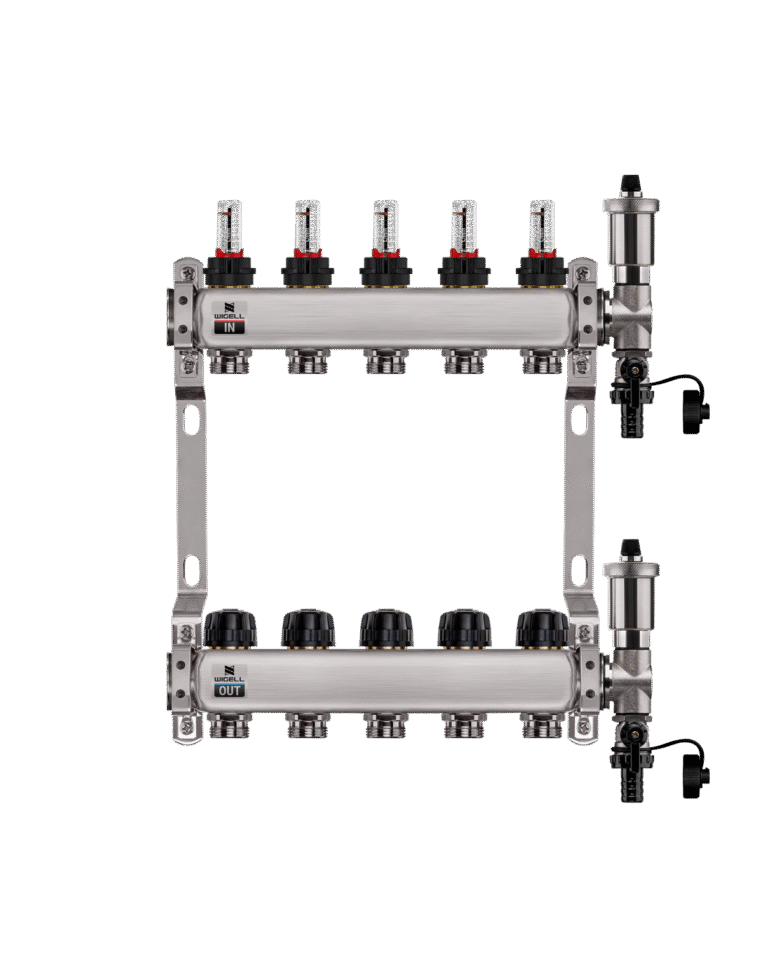

STAINLESS STEEL MANIFOLD ARMED WITH AUTOMATIC VENT - WIRO

MPN

Size

Quantity per pack

01.0321701

2 circuits

1

01.0321702

3 circuits

1

01.0321703

4 circuits

1

01.0321704

5 circuits

1

01.0321705

6 circuits

1

01.0321706

7 circuits

1

01.0321707

8 circuits

1

01.0321708

9 circuits

1

01.0321709

10 circuits

1

01.0321710

11 circuits

1

01.0321711

12 circuits

1

01.0321712

13 circuits

1

01.0321713

14 circuits

1

01.0321714

15 circuits

1

01.0321715

16 circuits

1

01.0321716

17 circuits

1

01.0321717

18 circuits

1

Advantages

  • Material: Stainless Steel
  • Temperature [max]: 70°C
  • Working pressure [max]: 6 bar
  • Flow meters: 0-5 l/min
  • Handle: with damping rubber
  • Glycol [max]: 50%
  • PZH certificate
  • Warranty: 2 years for the product
  • Warranty: 5 years for tightness

STAINLESS STEEL MANIFOLD WITH KEY VENT + STRAIGHT BALL VALVE - WIRO

MPN

Size

Quantity per pack

01.0322101

2 circuits

1

01.0322102

3 circuits

1

01.0322103

4 circuits

1

01.0322104

5 circuits

1

01.0322105

6 circuits

1

01.0322106

7 circuits

1

01.0322107

8 circuits

1

01.0322108

9 circuits

1

01.0322109

10 circuits

1

01.0322110

11 circuits

1

01.0322111

12 circuits

1

01.0322112

13 circuits

1

01.0322113

14 circuits

1

01.0322114

15 circuits

1

01.0322115

16 circuits

1

01.0322116

17 circuits

1

01.0322117

18 circuits

1

Advantages

  • Material: Stainless Steel
  • Temperature [max]: 70°C
  • Working pressure [max]: 6 bar
  • Flow meters: 0-5 l/min
  • Handle: with damping rubber
  • Glycol [max]: 50%
  • PZH certificate
  • Warranty: 2 years for the product
  • Warranty: 5 years for tightness

STAINLESS STEEL MANIFOLD WITH KEY VENT + ANGLE BALL VALVE - WIRO

MPN

Size

Quantity per pack

01.0322201

2 circuits

1

01.0322202

3 circuits

1

01.0322203

4 circuits

1

01.0322204

5 circuits

1

01.0322205

6 circuits

1

01.0322206

7 circuits

1

01.0322207

8 circuits

1

01.0322208

9 circuits

1

01.0322209

10 circuits

1

01.0322210

11 circuits

1

01.0322211

12 circuits

1

01.0322212

13 circuits

1

01.0322213

14 circuits

1

01.0322214

15 circuits

1

01.0322215

16 circuits

1

01.0322216

17 circuits

1

01.0322217

18 circuits

1

Advantages

  • Material: Stainless Steel
  • Temperature [max]: 70°C
  • Working pressure [max]: 6 bar
  • Flow meters: 0-5 l/min
  • Handle: with damping rubber
  • Glycol [max]: 50%
  • PZH certificate
  • Warranty: 2 years for the product
  • Warranty: 5 years for tightness

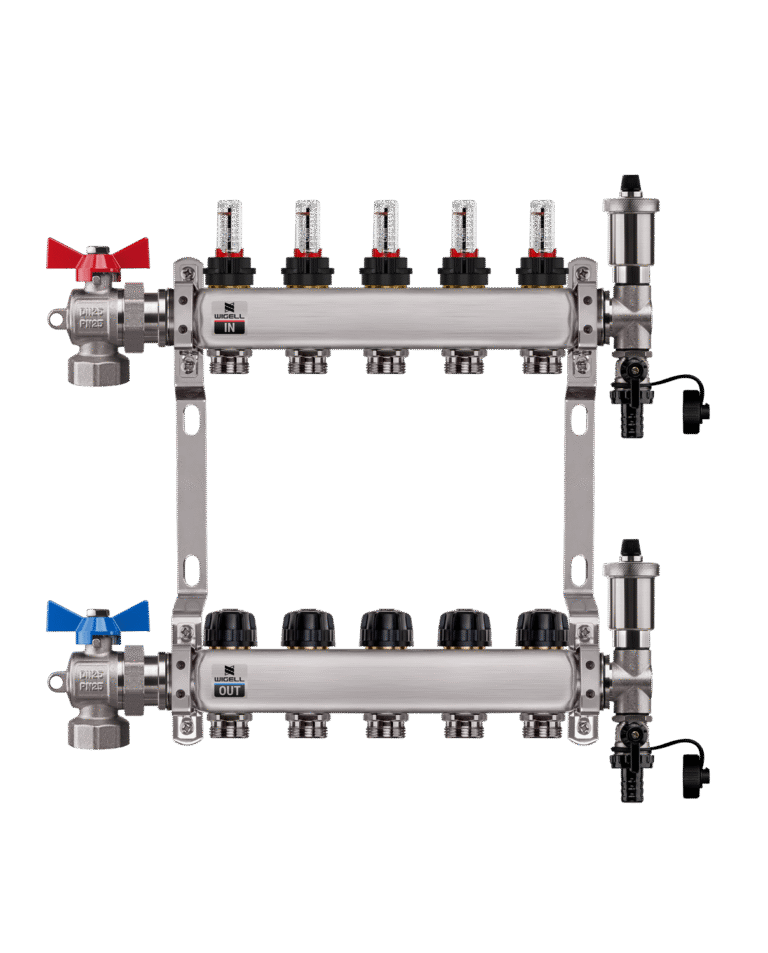

STAINLESS STEEL MANIFOLD WITH AUTOMATIC VENT + STRAIGHT BALL VALVE - WIRO

MPN

Size

Quantity per pack

01.0321901

2 circuits

1

01.0321902

3 circuits

1

01.0321903

4 circuits

1

01.0321904

5 circuits

1

01.0321905

6 circuits

1

01.0321906

7 circuits

1

01.0321907

8 circuits

1

01.0321908

9 circuits

1

01.0321909

10 circuits

1

01.0321910

11 circuits

1

01.0321911

12 circuits

1

01.0321912

13 circuits

1

01.0321913

14 circuits

1

01.0321914

15 circuits

1

01.0321915

16 circuits

1

01.0321916

17 circuits

1

01.0321917

18 circuits

1

Advantages

  • Material: Stainless Steel
  • Temperature [max]: 70°C
  • Working pressure [max]: 6 bar
  • Flow meters: 0-5 l/min
  • Handle: with damping rubber
  • Glycol [max]: 50%
  • PZH certificate
  • Warranty: 2 years for the product
  • Warranty: 5 years for tightness

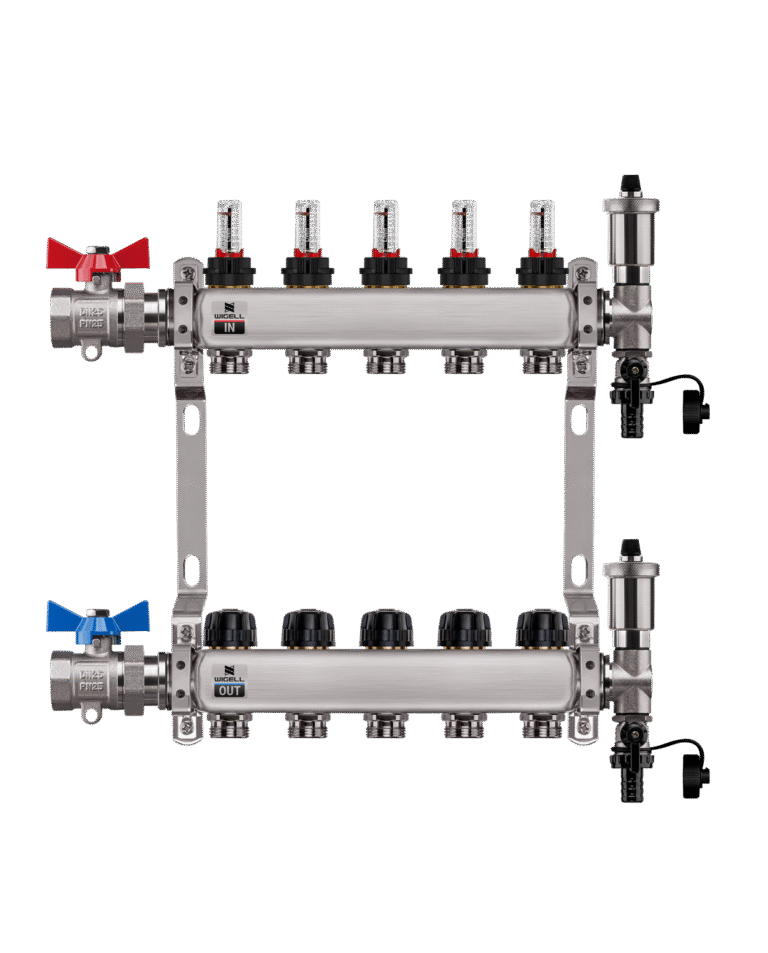

STAINLESS STEEL MANIFOLD WITH AUTOMATIC VENT + ANGLE BALL VALVE - WIRO

MPN

Size

Quantity per pack

01.0322001

2 circuits

1

01.0322002

3 circuits

1

01.0322003

4 circuits

1

01.0322004

5 circuits

1

01.0322005

6 circuits

1

01.0322006

7 circuits

1

01.0322007

8 circuits

1

01.0322008

9 circuits

1

01.0322009

10 circuits

1

01.0322010

11 circuits

1

01.0322011

12 circuits

1

01.0322012

13 circuits

1

01.0322013

14 circuits

1

01.0322014

15 circuits

1

01.0322015

16 circuits

1

01.0322016

17 circuits

1

01.0322017

18 circuits

1

Advantages

  • Material: Stainless Steel
  • Temperature [max]: 70°C
  • Working pressure [max]: 6 bar
  • Flow meters: 0-5 l/min
  • Handle: with damping rubber
  • Glycol [max]: 50%
  • PZH certificate
  • Warranty: 2 years for the product
  • Warranty: 5 years for tightness
